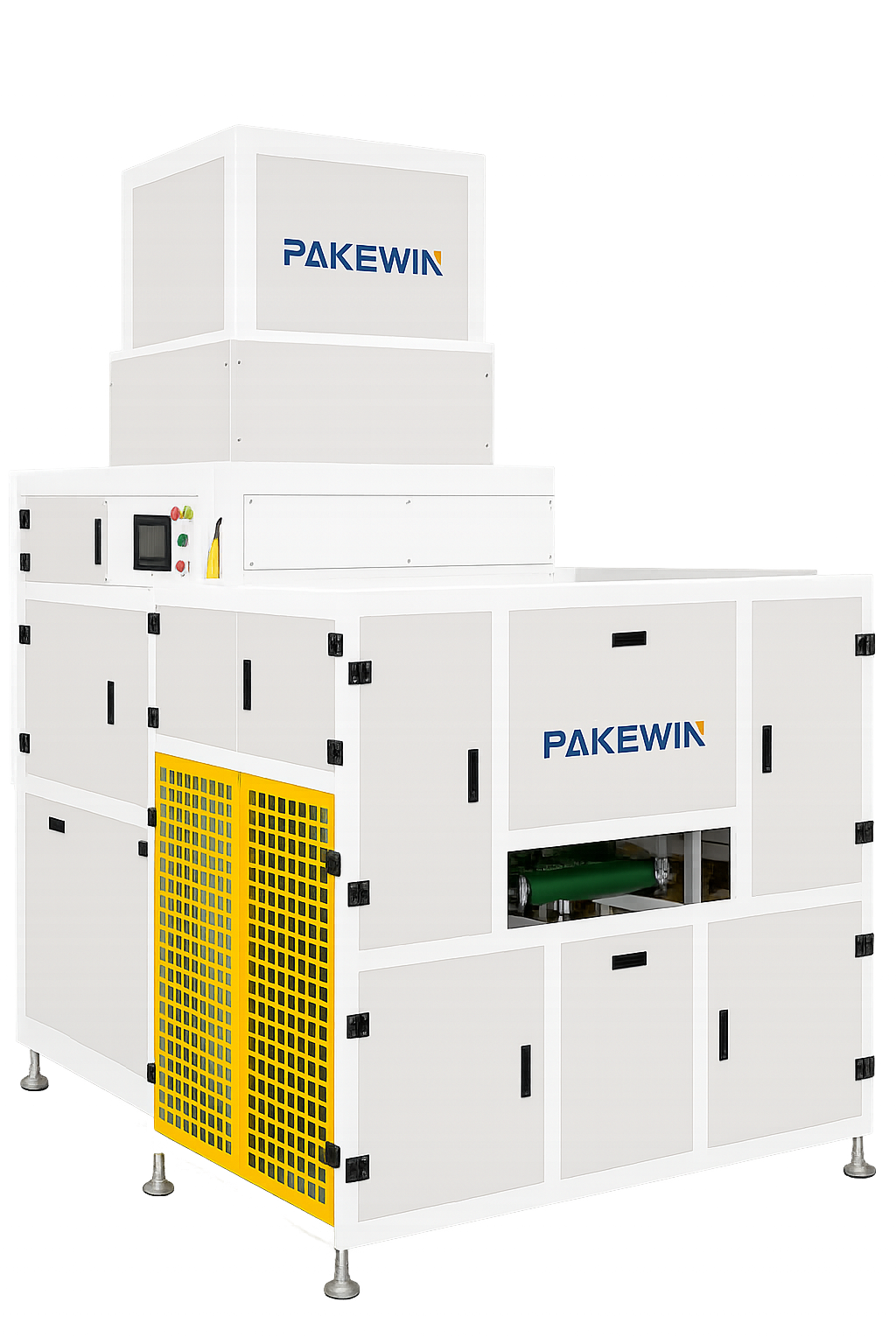

PAK-AFG5 Fully Automatic PE Packing Machine
A compact continuous system for automatic 2.5–10 kg PE bag packaging at a stated output of 800–900 bags per hour.
Compact Automatic Bagging
Reduce manual handling in medium-size PE bag production
The PAK-AFG5 integrates automatic packaging functions in a compact footprint for compatible products packed in 2.5–10 kg PE bags. Stable bag handling, controlled filling and sealing support continuous production with less operator intervention than a manual-assisted process.
Every product and bag behaves differently. PAKEWIN reviews product flow, bulk density, bag dimensions, PE material and seal requirements before confirming the dosing and handling arrangement. This prevents a nominal speed target from being treated as a guaranteed result without application data.
800–900 Bags/H
Support high-throughput continuous production under suitable product and bag conditions.
Compact Automation
Combine bag handling, filling and sealing in a space-conscious automatic packaging system.
Quick Selection Answer
When is the PAK-AFG5 a suitable choice?
The PAK-AFG5 is intended for compatible products packed in 2.5–10 kg PE bags when a factory needs continuous automatic filling, bag handling and sealing with a compact arrangement. The stated output is 800–900 bags per hour; actual accepted output depends on product flow, bag consistency, target weight, sealing time and connected equipment.
If the package must be formed directly from roll film, compare the PAK-VFS1 vertical form fill seal machine. If the product or PE bag has not been tested, send representative samples before final selection rather than choosing from speed alone.
1. Product feeding and weighing
The selected dosing system meters the product to the target weight. Feeding design is chosen for the actual product behavior.
2. Bag positioning
The automatic handling system presents and secures the compatible PE bag at the filling position.
3. Filling and settling
The measured product enters the bag. Discharge timing and any settling requirement are configured to support stable transfer.
4. Sealing and discharge
The filled bag is sealed and released for conveying, weight inspection, metal detection or secondary packaging.
Technical Specifications
PAK-AFG5 operating data
Final performance is confirmed from representative product, bag and factory utility information.
ModelPAK-AFG5
Pack range2.5–10 kg
Stated capacity800–900 bags/h
Bag applicationCompatible PE bags
Power supplyAC 380 V / 50 Hz / 4 kW
Air supply0.5–0.7 MPa / 10 m³/h
Machine dimensions2,389 × 1,640 × 2,608 mm
OperationFully automatic continuous packing
Project Engineering
Data required before machine selection
Product characteristics
Provide material name, bulk density, particle size, moisture, flowability, dust and fragility, ideally with a representative sample.
PE bag specification
Send bag drawings or samples, dimensions, material thickness, opening method and required seal appearance.
Production requirement
Define target weights, acceptable tolerance, required bags per hour, operating shifts and planned product changeovers.
Line integration
The project can connect coding, checkweighing, metal detection and robotic palletizing.
Before comparing quotations, review the food packaging automation cost and ROI guide and PAKEWIN’s 12-question supplier checklist. Confirm the complete scope, FAT method, export documents, utilities and after-sales responsibility—not only the headline machine speed.
Frequently Asked Questions
PAK-AFG5 buyer questions
What products can the PAK-AFG5 pack?
The PAK-AFG5 is intended for compatible products that can be weighed, filled and sealed in 2.5–10 kg PE bags. Final suitability is confirmed from flowability, bulk density, particle size, moisture and bag requirements.
What is the PAK-AFG5 packing range?
The specified packing range is 2.5–10 kg. Actual usable weights depend on product density, bag dimensions, dosing system and required accuracy.
What is the production capacity of the PAK-AFG5?
The stated capacity is 800–900 bags per hour. Actual output depends on target weight, product flow, bag handling, sealing time and downstream equipment.
What utilities does the PAK-AFG5 require?
The standard specification lists AC 380 V, 50 Hz, 4 kW power and compressed air at 0.5–0.7 MPa with stated consumption of 10 m³/h. Site voltage and option requirements should be confirmed before manufacture.
