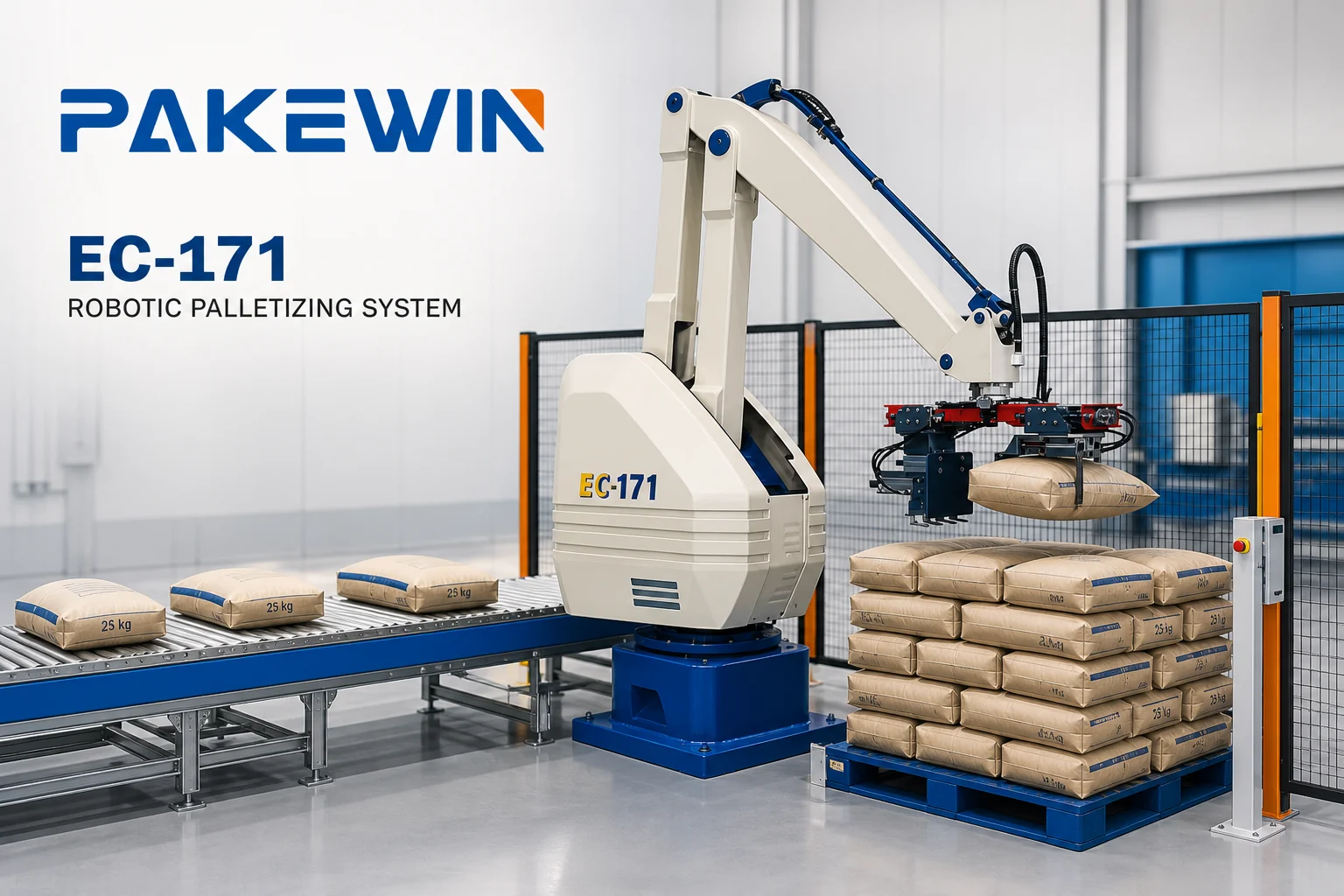

EC-171 Robotic Palletizing System
A compact four-axis end-of-line palletizing solution for bags and cases, configured and integrated by PAKEWIN for the required payload, speed, pallet pattern and factory layout.
Automatic Packaging Lines · Robotic Palletizing
High-speed or heavy-duty palletizing
The EC-171 series gives packaging plants two application choices: the EC-171HS for higher palletizing speed and the EC-171HD for heavier loads. Its compact rotation radius and wide working envelope make it suitable for end-of-line layouts where floor space and reliable pallet handling are both important.
PAKEWIN configures the complete working cell around the application, including the end effector, infeed conveyor, pallet pattern, safety guarding, controls and connection to upstream bagging or secondary packaging equipment.
Compact Working Cell
A 1,600 mm longitudinal reach, 2,400 mm vertical range and compact rotation radius support practical end-of-line layouts.
Line Integration
Conveyors, grippers, pallet handling, safety systems and controls are configured around the complete packaging process.
Configuration Guide
How to choose the EC-171HS or EC-171HD
Select the robot from the complete handling task, not from bag weight alone. Payload must include the product, gripper, mounting components and any hoses or accessories carried by the arm.
Choose EC-171HS for cycle demand
The HS configuration is suited to lighter bags or cases where the complete handled load remains within 80 kg and the pallet pattern requires a higher cycle rate.
Choose EC-171HD for heavier handling
The HD configuration supports a complete handled load up to 160 kg. It is intended for heavier products or grippers where payload margin is more important than maximum nominal cycles.
Convert cycles into real pallet output
Robot cycles per hour are not the same as bags per hour or pallets per hour. Actual output depends on picks per cycle, product spacing, layer pattern, pallet changes, travel distance and upstream line stability.
Verify reach and interference
A layout drawing should confirm infeed position, pallet locations, stack height, gripper clearance, guarding, operator access and maintenance space throughout the full working envelope.
Model Selection
EC-171HS and EC-171HD
Payload values include the end effector. Actual throughput depends on the product, pallet pattern, travel distance and line conditions.
ConfigurationEC-171HS · High Speed
Payload80 kg including end effector
Rated palletizing capacityUp to 1,500 cycles/hour
ConfigurationEC-171HD · Heavy Duty
Payload160 kg including end effector
Rated palletizing capacityUp to 1,000 cycles/hour
Technical Specifications
EC-171 series data
Motion / action modeMulti-articulated / cylindrical
Axes4 axes
Vertical operating range2,400 mm
Longitudinal reach1,600 mm
Base / wrist rotation330° / 330°
Repeatability±0.5 mm
Programming memory120–400 locations
Teaching methodTeaching playback / teaching support
Power requirement200/220 V, 3-phase, 50/60 Hz
Robot power consumption4 kVA / 10.5 A
Robot weight750 kg without end effector
Pneumatic requirement5.7 SCFM at 70 psi (0.5 MPa) with a standard bag or case end effector
Complete Palletizing Cell
What the integrated system can include
The robot is one part of a safe, productive palletizing station. PAKEWIN defines the surrounding equipment and controls around the product, line rate, pallet pattern and destination-market requirements.
Product infeed and orientation
Conveyors, turning, flattening and spacing devices present each bag or case consistently before the robot pick point.
Application-specific end effector
Bag, clamp, fork, vacuum or combined tooling is selected from the package shape, surface, porosity, weight and required picks per cycle.
Pallet handling
The cell can be planned with manual pallet positions or automated pallet supply and discharge according to output and available floor space.
Safety and controls
Guarding, access gates, interlocks, emergency stops and line interfaces must be engineered and reviewed for the installation location. See how the cell connects to a complete automatic packaging line.
Project Configuration
Information required for selection
For an accurate layout and quotation, provide the bag or case dimensions and weight, target speed, pallet dimensions, pallet pattern, upstream equipment, available floor plan, electrical standard and preferred safety requirements.
Typical applications
Rice, grain, feed, fertilizer, pet food and other bagged products, plus cartons or cases with an application-specific gripper.
Engineering confirmation
Final payload, cycle rate, utilities, gripper design and working envelope must be confirmed against the actual product and factory layout.
Frequently Asked Questions
EC-171 palletizing questions
What is the difference between EC-171HS and EC-171HD?
The EC-171HS is the high-speed configuration with an 80 kg payload and up to 1,500 cycles per hour. The EC-171HD is the heavy-duty configuration with a 160 kg payload and up to 1,000 cycles per hour. Payload includes the end effector.
Can the EC-171 palletize both bags and cases?
Yes. PAKEWIN selects and configures the end effector according to the bag, case, pallet pattern, line speed and handling requirements.
Can PAKEWIN integrate the EC-171 into a complete packaging line?
Yes. The project scope can include conveyors, inspection equipment, pallet handling, safety guarding, controls and connection to upstream packaging equipment.
For investment planning, review the packaging automation cost and ROI guide.
Planning a 25 kg bag palletizing cell?
Read our 25 kg bag robotic palletizing buyer guide to check line speed, gripper payload, bag presentation and pallet patterns before requesting a configuration.
