0.5–5 kg Range
Support a broad small- and medium-bag range after matching product density and bag dimensions.
Home / Fully Automatic Packing / PAK-VFS1

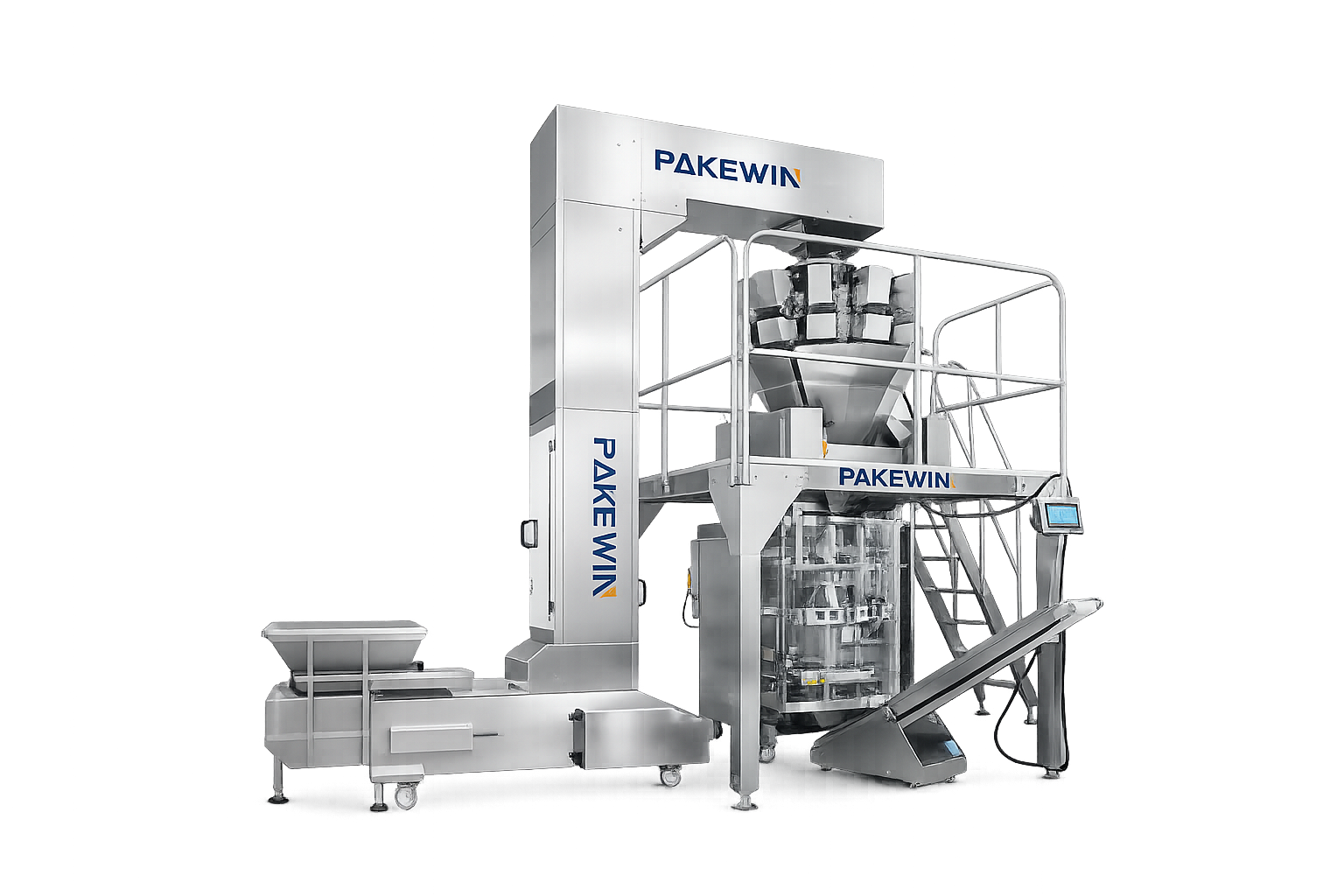

PAK-VFS1 Vertical Form Fill Seal Machine
A roll-film packaging machine for 0.5–5 kg pillow and gusseted bags, with double-belt film pulling and configurable product dosing.
Roll-Film Bag Forming
Form, fill and seal bags in one vertical process
The PAK-VFS1 forms bags from packaging film, receives a measured product dose and completes the sealing cycle in a compact vertical layout. Double-belt film pulling supports controlled film transport for pillow and gusseted bag production.
The packaging result depends on more than machine speed. Product flow, bag dimensions, film structure, sealability and dosing accuracy must be evaluated together. PAKEWIN configures the filler and discharge path around the actual application rather than assuming one feeder suits every material.
30–70 Bags/Min
Configure cycle speed according to bag length, dosing time, film and sealing requirements.
Flexible Bag Styles
Produce compatible pillow or gusseted bags from roll film with the required forming set.
Quick Selection Answer
When should you use a vertical form fill seal machine?
Choose the PAK-VFS1 when bags must be formed from compatible roll film and filled in a continuous vertical process. It is specified for 0.5–5 kg pillow and gusseted bags at a stated 30–70 bags per minute. The final filler, forming set and sealing configuration must match the product, target weight, bag dimensions and film structure.
A VFFS machine is not selected by speed alone. Powders, free-flowing granules and fragile products can require different dosing and discharge arrangements. If a project uses compatible 2.5–10 kg PE bags rather than a confirmed roll-film process, also compare the PAK-AFG5.
1. Film unwinding and forming
Roll film travels over the forming set and is shaped into a tube. Film width and forming parts are selected for the finished bag.
2. Vertical and bottom sealing
The machine creates the longitudinal seal and lower cross seal. Temperature, pressure and dwell time are adjusted for the film structure.
3. Product dosing
A compatible dosing unit measures the target quantity and discharges it through the forming tube into the open bag.
4. Top sealing and discharge
The cross-seal assembly closes the filled bag and separates it for downstream conveying, inspection and secondary packaging.
Technical Specifications
PAK-VFS1 operating data
Final utilities and machine dimensions are application-specific and will be confirmed with the selected dosing, bag and option package.
ModelPAK-VFS1
Pack range0.5–5 kg
Stated capacity30–70 bags/min
Bag stylesPillow and gusseted bags
Film pullingDouble-belt system
Film thickness0.04–0.09 mm
Power and airConfirmed by configuration
DimensionsConfirmed by configuration
Selection Data
Information needed for an accurate VFFS proposal
Product
Send the product name, bulk density, particle size, moisture, dust level and flow behavior so the correct dosing method can be selected.
Bag and film
Provide finished bag width and length, bag style, target weight, film structure, thickness and sample rolls when available.
Performance target
State required bags per minute, accuracy, seal appearance, coding needs and available factory utilities.
Downstream automation
The line can add checkweighing, metal detection, case packing or pallet handling where suitable.
For overseas procurement, use the packaging machine supplier checklist to agree on sample testing, FAT acceptance criteria, language of manuals, electrical standards, spare parts and remote support. See PAKEWIN machine videos for equipment-in-operation references.
Frequently Asked Questions
PAK-VFS1 buyer questions
What bag styles can the PAK-VFS1 produce?
The PAK-VFS1 is specified for pillow and gusseted bags made from compatible roll film. Final bag dimensions, film structure and sealing arrangement must be confirmed for the product and shelf-life requirement.
What filling range does the PAK-VFS1 support?
The specified range is 0.5–5 kg. Actual usable weights depend on product bulk density, bag dimensions, dosing system and required accuracy.
How fast is the PAK-VFS1?
The stated capacity is 30–70 bags per minute. Actual speed depends on bag length, target weight, product flow, film behavior, sealing time and downstream equipment.
Which dosing system should be used with the PAK-VFS1?
The dosing system is selected for the material. Compatible granules may use weighing, while powders and other products may require a different feeder. PAKEWIN confirms the solution from representative product and bag data.
