Home / Vacuum Packing / PAK-RP9

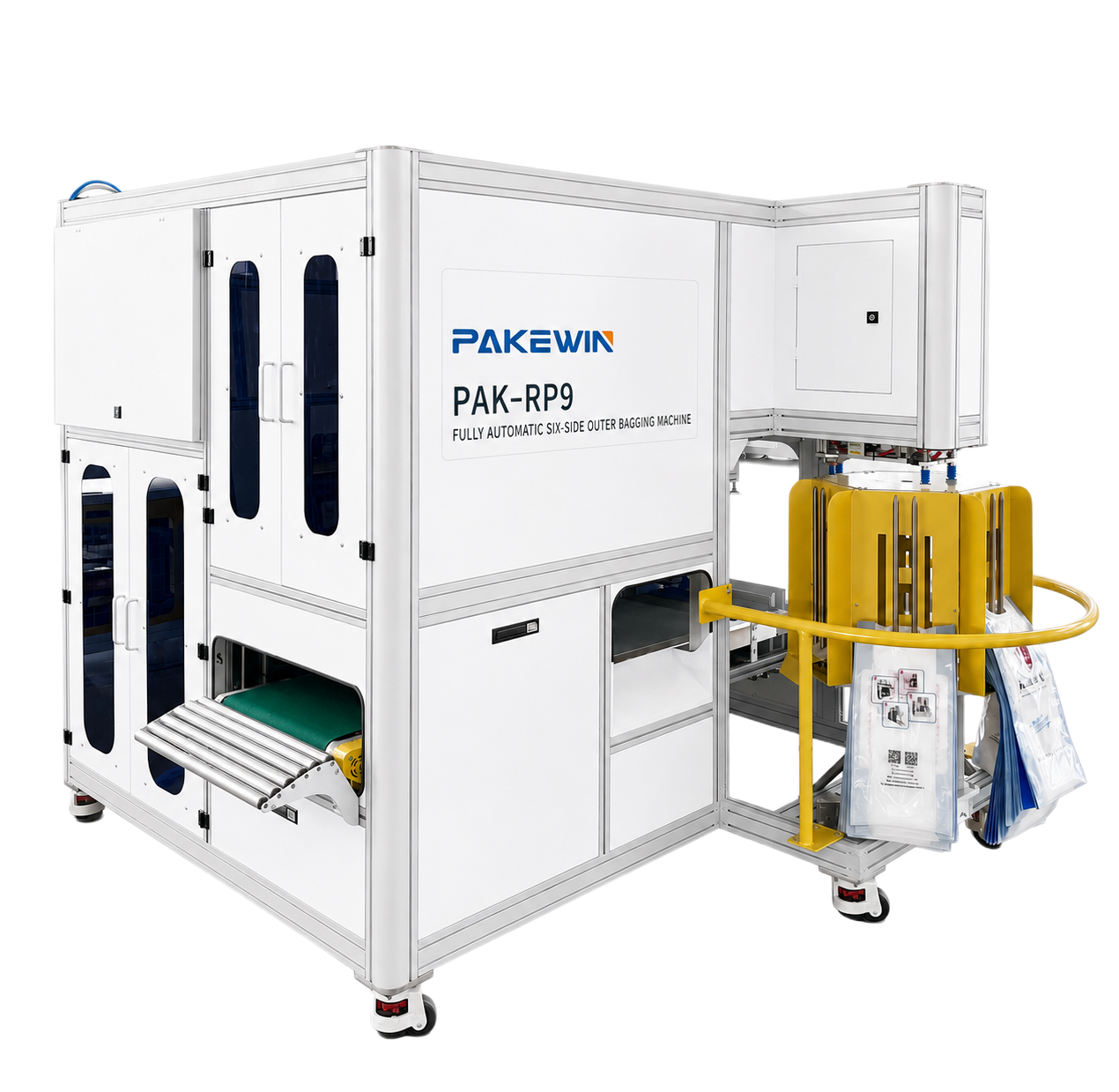

PAK-RP9 Rice Brick Outer Bagging Machine
Automatic overwrapping of finished vacuum rice bricks into premade outer bags with bag feeding, loading, sealing and discharge.
Secondary Packaging · 0.5–5 kg Rice Bricks
Match the machine to the actual product and package
The PAK-RP9 is secondary packaging equipment. It receives an already vacuum-packed brick and places it into an outer retail or handle bag; it does not create the primary vacuum pack itself. This distinction is important when planning a complete rice packaging line.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Suitable for 0
Suitable for 0.5–5kg vacuum rice bricks.
Recipe memory allows quick product change without manual adjustment
Recipe memory allows quick product change without manual adjustment.
Applications
Where the PAK-RP9 fits
Vacuum rice bricks
Overbag accepted 0.5–5 kg primary packs after vacuum shaping and sealing.
Handle bags
Configure the bag-handling system for approved plastic handle-bag samples.
Standard outer bags
Run compatible side-sealed premade bags after pickup and opening tests.
Integrated rice lines
Connect the machine after vacuum packing and before inspection, case packing or palletizing.
Technical Specifications
PAK-RP9 operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-RP9
Pack range0.5–5 kg Vacuum Rice Bricks, Grains, Beans, Food Products, Chemical Products
Stated capacity850–950 Bags/Hour
Power supplyAC380V ±10%, 50Hz, 3 Phase, 5 Wire
Compressed air0.5–0.7 MPa,0.35 m³/min
Size / accuracy2570 * 1710 * 1850 mm
Operating Sequence
How the process is organized
1. Receive the vacuum brick
An accepted primary pack enters from the upstream vacuum machine.
2. Feed and open an outer bag
The bag-handling system presents the approved outer bag.
3. Load and close
The vacuum brick is inserted and the outer bag is sealed.
4. Discharge
The completed retail pack transfers to downstream inspection and handling.
Project Information
What to send before configuration
Provide primary-pack dimensions, weight and firmness; outer-bag drawings and samples; handle style; sealing material; incoming orientation; reject logic; sustained line output; utilities and downstream layout.
Related Equipment
Compare the surrounding process
PAK-T3 semi-automatic rice brick overbagging machine · PAK-AVS5 six-side vacuum machine · PAK-M10 four-station vacuum machine · Vacuum packing range
Frequently Asked Questions
PAK-RP9 buyer questions
Does the PAK-RP9 make the vacuum rice brick?
No. It receives an already vacuum-packed brick and places it into a separate outer bag.
What primary-pack weights are supported?
The listed range is 0.5–5 kg. Exact dimensions, firmness and surface friction must be tested because they affect transfer and insertion.
Which outer bags can it use?
It can be configured for compatible handle and standard side-sealed bags. Final approval requires real bag samples.
Can it reject an unsuitable incoming pack?
A reject function can be configured, but the inspection method and acceptance rules must be defined for the project.
