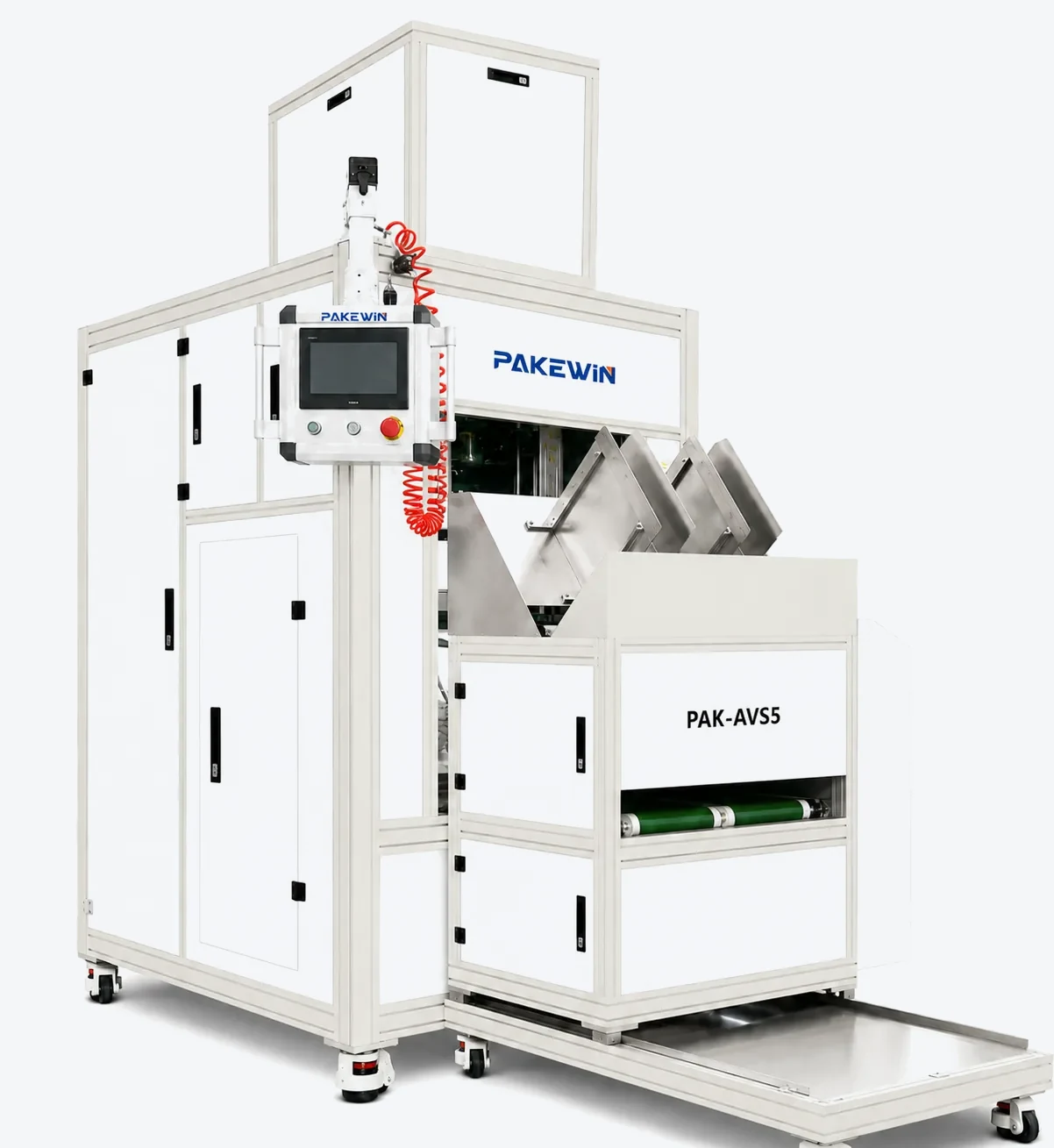

PAK-AVS5 Automatic Six-Side Vacuum Packing Machine
Automatic weighing, vacuum shaping and sealing for compact retail packs, with a dual-output arrangement designed for higher-volume rice and grain production.
Automatic Vacuum Packing · 0.35–5 kg
Match the machine to the actual product and package
The PAK-AVS5 is intended for automatic six-side vacuum packaging of compatible free-flowing products. Its compact brick format can support shelf presentation, carton packing and pallet stability when the product, pouch and vacuum recipe are correctly matched.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Double output for higher speed
Double output for higher speed
High accuracy and stable running
High accuracy and stable running
Applications
Where the PAK-AVS5 fits
Rice and cereal grains
Compact vacuum packs for retail, food-service and export programs.
Beans and seeds
Sample-test particle size, sharp edges and breakage sensitivity before approval.
Pet food and compatible granules
Confirm oil content, dust, flow and barrier requirements with real material.
Integrated production lines
Coordinate feeding, inspection, case packing and palletizing around accepted output.
Technical Specifications
PAK-AVS5 operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-AVS5
Pack range0.35–5 kg
Stated capacity950–1100 bags/h
Power supplyAC 380V / 7.5 kW
Compressed air0.5 MPa / 0.36 m³/min
Size / accuracy1970 × 4114 × 2754 mm
Operating Sequence
How the process is organized
1. Meter the product
The weighing system prepares the target dose for the selected package.
2. Load and position
The product and pouch are transferred into the shaping sequence.
3. Evacuate and shape
Air is removed while the package is formed into the specified six-side profile.
4. Seal and discharge
The finished pack is sealed and released for inspection and downstream handling.
Project Information
What to send before configuration
Send product samples, bulk density, particle size, target weight, pouch drawing and film structure, desired finished dimensions, residual-air requirement, sustained output, utilities and downstream layout.
Related Equipment
Compare the surrounding process
PAK-VG10 vacuum packing machine · PAK-VG15 brick-shape vacuum machine · Vacuum packing range
Frequently Asked Questions
PAK-AVS5 buyer questions
What products can the PAK-AVS5 pack?
It is intended for rice, grains and other compatible free-flowing granular products. Final suitability depends on product flow, particle shape, moisture, oil, dust and pouch compatibility.
What is the stated output?
The stated range is 950–1100 bags per hour. Sustained accepted output depends on target weight, product flow, pouch specification, vacuum target and downstream handling.
Does it make a six-side brick package?
Yes. The machine is designed for six-side vacuum shaping. Finished dimensions and firmness must be confirmed with the actual product and pouch.
What should be tested before ordering?
Test representative product and pouches for weighing, filling, shaping, sealing, leak integrity, appearance and downstream stability.
