Four-Station Output
Parallel forming stations support up to four packs per cycle under the specified small-package conditions.
Home / Vacuum Packing / Six-Side Vacuum Packing / PAK-M10

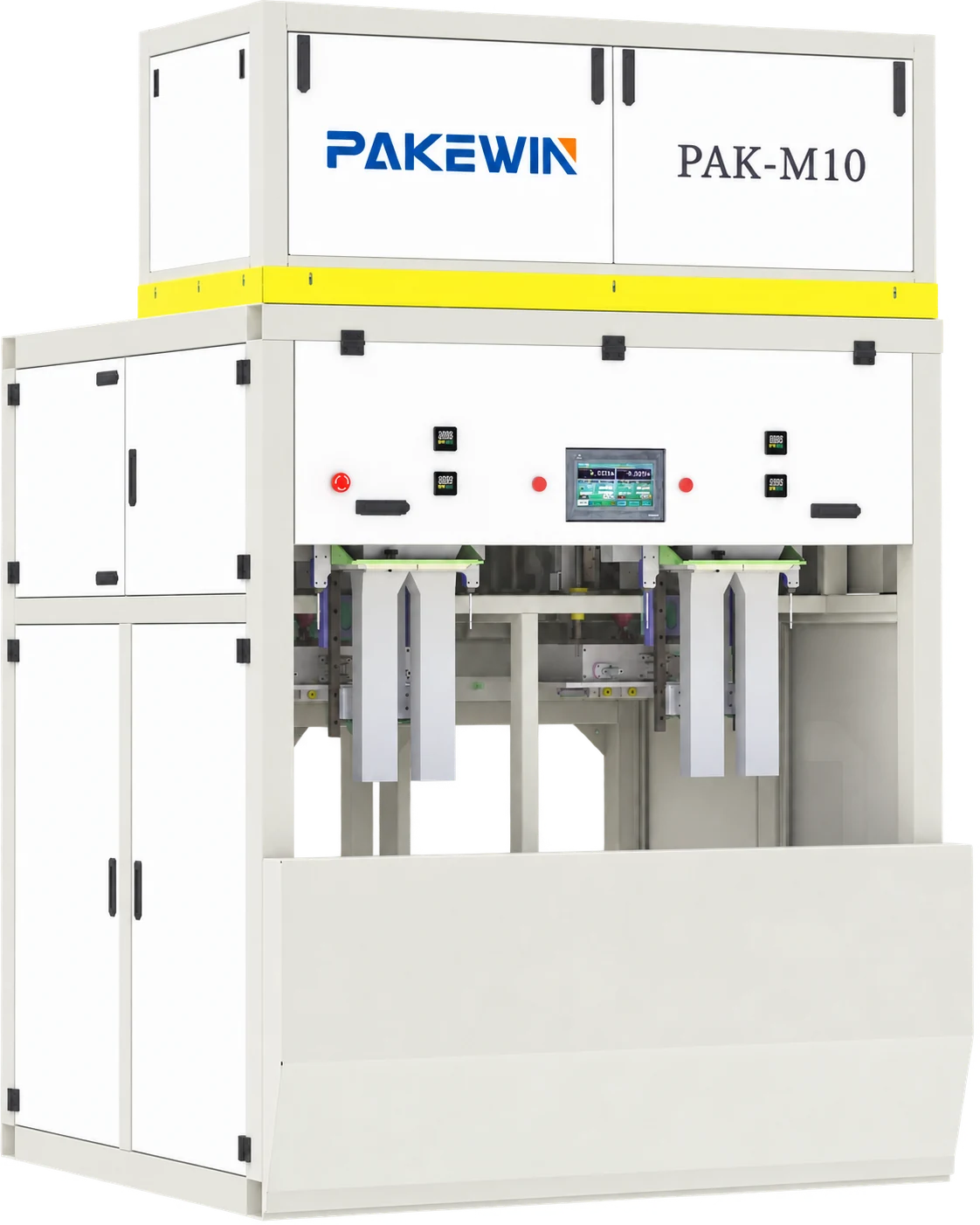

PAK-M10 Four-Station Six-Side Vacuum Packing Machine
Semi-automatic weighing, vacuum shaping and reinforced sealing for 0.3-5 kg rice, grain and compatible granular products in compact brick-shaped packs.
Vacuum Packing · 0.3-5 kg Granules
Increase small-pack output with four parallel stations
The PAK-M10 is a semi-automatic four-station six-side vacuum packing machine for compact, brick-shaped packages. Its four-station layout is designed to process multiple packs in parallel, supporting high output for small rice and grain packages while maintaining controlled weighing, forming and sealing.
Typical applications include rice, millet, corn, mixed grains, seeds and cat litter. Other free-flowing granular materials can be evaluated according to bulk density, particle size, flow behavior, dust, product fragility and pouch compatibility.
Up to 1,200 Bags/h
Specified at 1,000-1,200 bags/h for 0.3-1 kg packs and 600-700 bags/h for 2.5-5 kg packs.
Six-Side Brick Shape
Fixed forming moulds help produce compact, regular packages for retail display, case packing and pallet handling.
Technical Specifications
PAK-M10 operating data
These are stated reference values. Final performance is confirmed through representative material and pouch testing.
Packaging range0.3-5 kg
Speed at 0.3-1 kg1,000-1,200 bags/h
Speed at 2.5-5 kg600-700 bags/h
Package length70-240 mm
Package width35-100 mm
Package height100-360 mm
Suitable materialFree-flowing granules
Scale division1 g
Accuracy classX (0.5)
Standard power3-phase 5-wire, 380 V, 50 Hz, 8.1 kW
Compressed air0.6-0.8 MPa, 35 m³/h
Machine dimensions1692 × 1919 × 2643 mm
Packaging Process
From measured product to a stable vacuum brick
1. Meter the product
The weighing system doses the selected granular material according to the stored target-weight settings.
2. Form across four stations
Parallel stations organize the vacuum-forming cycle to support higher small-package throughput.
3. Vacuum and shape
Fixed forming moulds create a regular six-sided package profile matched to the confirmed pouch dimensions.
4. Reinforce the seal
A dual heated-sealing arrangement is designed to improve seal security before finished packs leave the machine.
Material Applications
Granular products for six-side vacuum packaging
The machine is intended for free-flowing granular products. Product and pouch trials are recommended where dust, sharp particles, high oil content, irregular shapes or breakage sensitivity may affect weighing, vacuum shaping or sealing.
Rice and millet
Compact retail packs for common rice varieties, premium rice, millet and similar dry grains.
Corn and mixed grains
Evaluate particle size, package dimensions and mould selection for stable brick shaping.
Seeds
Confirm seed fragility, flow behavior and acceptable handling before finalizing the machine configuration.
Cat litter and other granules
Compatible free-flowing granules can be tested using the actual product, target weight and pouch structure.
Control & Changeover
Recipe storage, diagnostics and remote support
The control system supports multiple stored parameter sets for recurring products and package sizes. Operators can recall recipes from the touch screen, while fault self-diagnostics provide on-screen prompts to shorten troubleshooting time.
Adaptive weighing control and production-data collection support stable operation. Remote-connectivity functions can be configured for technical assistance, subject to the customer's network and security requirements. Package-size changes require the correct fixed forming mould and verified pouch settings.
Global Project Planning
Confirm utilities and package conditions before ordering
The listed standard is three-phase five-wire 380 V, 50 Hz with 8.1 kW installed power, plus compressed air at 0.6-0.8 MPa and 35 m³/h. PAKEWIN checks the destination electrical standard, operator language, factory utilities, ambient conditions, service access and spare-parts requirements before quotation.
Selection Information
What PAKEWIN needs for an accurate proposal
Send the product name, bulk density, particle size, target pack weights, pouch dimensions and film structure, required bags per hour, desired finished-pack dimensions, available power and compressed air, operator workflow and installation layout. Representative materials and pouches are recommended for testing.
Related Equipment
Build a complete rice vacuum packaging process
First, watch the PAK-M10 operating and mould-change video. The machine can be planned with upstream feeding, downstream conveying, dynamic checkweighing, metal detection, case packing and palletizing. View complete packaging line solutions or compare other rice vacuum packing machines.
