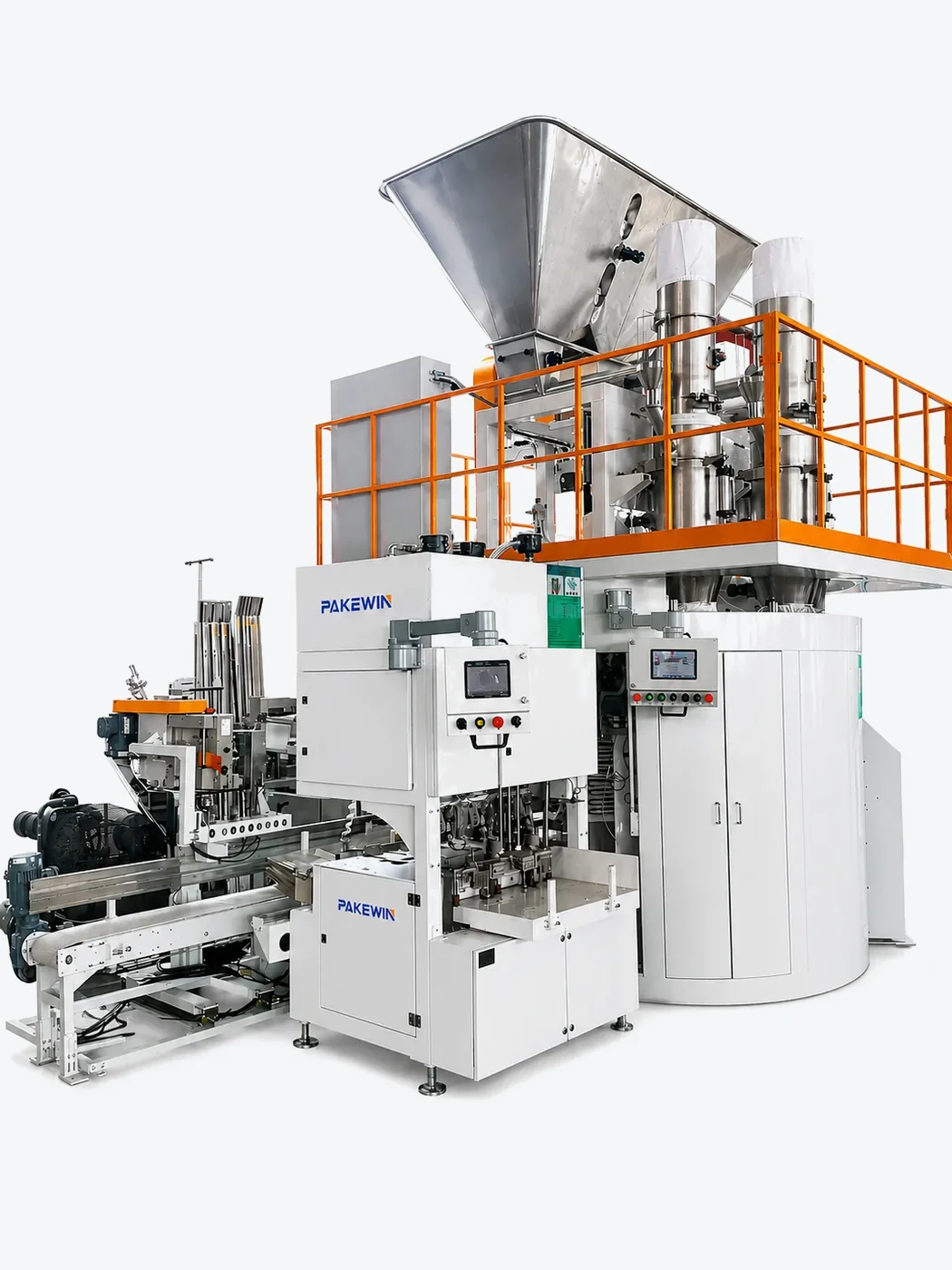

PAK-AFP50 Fully Automatic Powder Packing Machine
Automatic rotary bag handling, precision weighing and filling for 25–50 kg industrial powder bags, with stated output up to 600 bags per hour.
Automatic Powder Bagging · 25–50 kg
Reduce manual handling in heavy powder bagging
The PAK-AFP50 is a fully automatic rotary powder packing system for production plants that need coordinated empty-bag handling, weighing, filling, bag transfer and closing. Its 25–50 kg range suits common industrial and export bag formats.
Powders behave differently from free-flowing granules. PAKEWIN therefore evaluates bulk density, aeration, dust level, moisture, flowability and hazardous-area requirements before selecting the feeder, dust-control arrangement and bag-closing process.
Up to 600 Bags/H
Support high-output production under confirmed powder, bag and line conditions.
Rotary Bag Handling
Coordinate automatic bag placement, filling, transfer and discharge in a compact workflow.
Packaging Process
How the automatic powder bagging process works
1. Empty-bag feeding
Compatible open-mouth bags are separated, picked and positioned at the filling station. Consistent bag dimensions and mouth construction help maintain reliable handling.
2. Powder weighing and filling
The selected powder feeder meters material to the target weight. The configuration is matched to flowability, aeration, dust and required accuracy.
3. Bag transfer and closing
The filled bag is transferred to the selected heat-sealing, sewing or combined closing process according to bag material and product-protection needs.
4. Inspection and palletizing
Downstream conveyors can connect to weight inspection, contamination inspection, bag shaping and robotic palletizing.
Technical Specifications
PAK-AFP50 operating data
Final output and accuracy are confirmed with representative powder, bag samples and the planned line arrangement.
ModelPAK-AFP50
Pack range25–50 kg
Stated capacityUp to 600 bags/h
ApplicationCompatible industrial powders
Power supply3P+N+PE AC 380 V / 50 Hz
Installed power22 kW
Air pressure0.6 MPa
Machine dimensions5,144 × 3,864 × 5,637 mm
Powder Applications
Configure the feeder and dust control for the material
Food powders
Flour, starch and compatible food powders can be evaluated for hygiene requirements, dust collection, product contact materials and closing method.
Feed and agricultural powders
Feed additives and milled agricultural products require confirmation of bulk density, flow stability and bridging or aeration behavior.
Chemical and mineral powders
Selected non-food powders can be assessed against corrosion, dust, explosion-risk and material-safety requirements. Provide the safety data sheet during project review.
Difficult-flowing materials
Send representative samples when powder compaction, aeration, moisture or poor flow may affect feeding, weighing and bag stability.
Line Integration
Build a complete powder bagging and palletizing line
The PAK-AFP50 can be integrated with powder feeding, dust extraction, bag closing, conveyors, the HJR-CW12060 checkweigher, the HJR-MD6030 metal detector and the EC-171 robotic palletizing system. PAKEWIN checks electrical standards, controls, safety guarding and layout for the destination market.
Frequently Asked Questions
PAK-AFP50 buyer questions
What powders can the PAK-AFP50 pack?
The PAK-AFP50 can be configured for compatible industrial powders such as flour, starch, food powder, feed additives and selected chemical or mineral powders. Final suitability depends on bulk density, flowability, aeration, dust, moisture and safety requirements.
What bag weights can the PAK-AFP50 handle?
The specified packing range is 25–50 kg. Empty-bag dimensions, bag-mouth construction, powder behavior and target accuracy must be confirmed before the bagging configuration is finalized.
What is the capacity of the PAK-AFP50?
The stated output is up to 600 bags per hour. Actual capacity depends on target weight, powder flow and aeration, bag quality, deaeration needs, closing method and downstream equipment.
Can the PAK-AFP50 connect to a complete packaging line?
Yes. The machine can be engineered with powder feeding, dust collection, conveyors, bag closing, checkweighing, metal detection and robotic palletizing according to the product and factory layout.
