5–15 kg Pack Range
Designed for custom laminated-film six-sided pouches within the confirmed material, bag and vacuum-forming conditions.
Home / Vacuum Packing / Brick-Shape Packaging / PAK-VG15

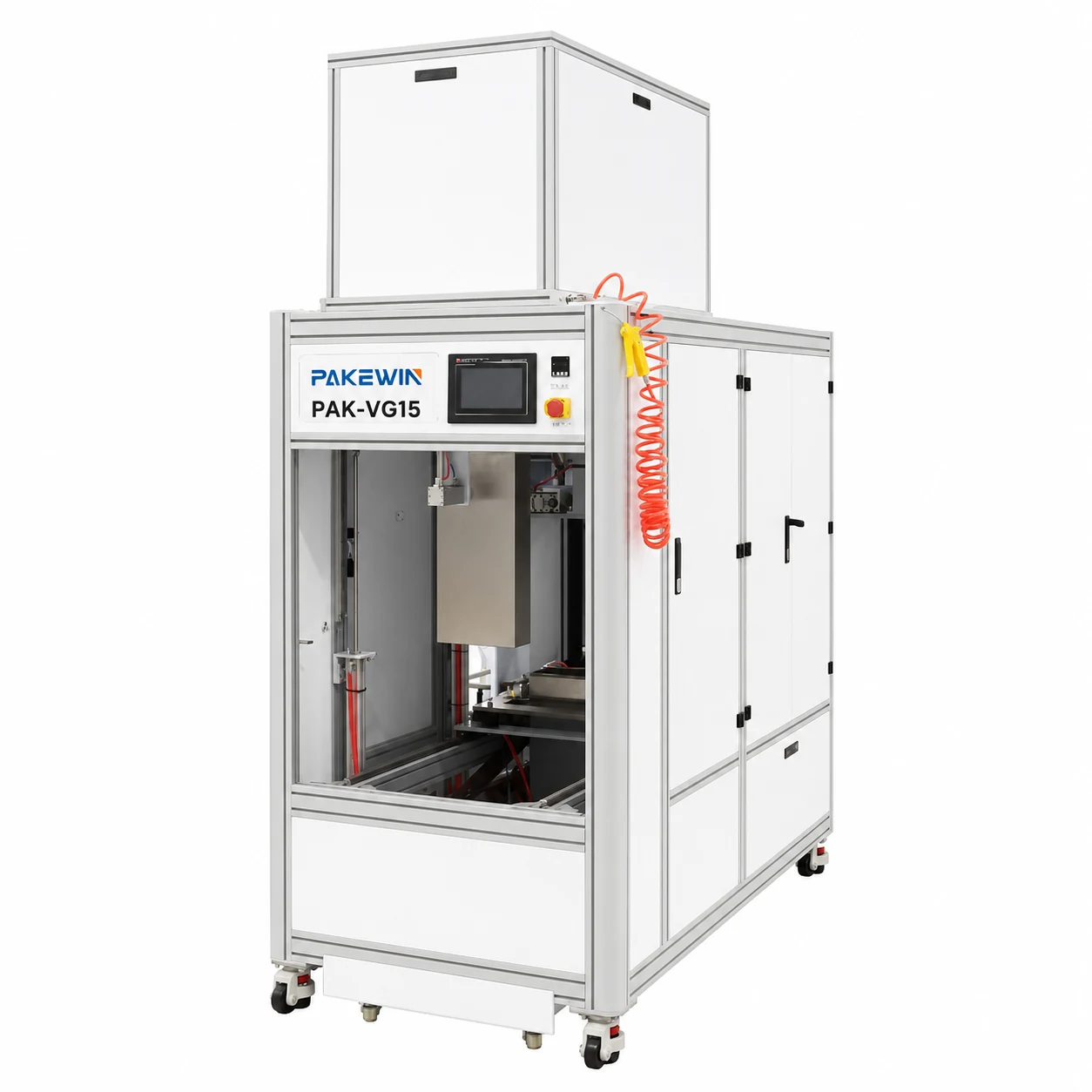

PAK-VG15 Brick-Shape Vacuum Packing Machine
Automatic weighing, filling, vacuum shaping and sealing for 5–15 kg rice, grain and compatible granular products in compact six-sided laminated-film pouches.
Vacuum Packing · 5–15 kg Granular Products
Produce compact, stable brick-shaped vacuum packages
The PAK-VG15 integrates weighing, filling, vacuum shaping, sealing and finished-pack discharge in one system. It is intended for custom six-sided laminated-film pouches and helps create a compact package format for retail presentation, export handling and space-efficient secondary packaging.
Typical applications include rice, grain, beans, seeds, pet food and cat litter. Other free-flowing granular materials can be evaluated from their bulk density, particle size, flow behavior, product fragility and pouch compatibility. PAKEWIN confirms the configuration through representative material and pouch testing.
Integrated Workflow
Combine automatic weighing and filling with vacuum shaping, sealing and finished-package discharge.
Recipe Changeover
Use stored settings and one-touch product changeover to support recurring products and package specifications.
Technical Specifications
PAK-VG15 operating data
Capacity and package quality must be confirmed with representative materials, pouches and the planned installation conditions.
Packaging range5–15 kg six-sided pouches
Pouch typeCustom laminated-film pouch
Specified capacityApprox. 150–300 packs/h
Standard power supplyAC 380 V, three-phase five-wire
Installed power3 kW
Compressed air0.6 MPa, 0.3 m³/min
Operating temperature0–40°C
Relative humidityBelow 90%
Machine dimensions960 × 1850 × 2600 mm
Main functionsWeighing, filling, vacuum shaping, sealing and discharge
Packaging Process
From bulk material to a shaped vacuum package
1. Weighing and filling
Vibration feeding, fast sampling and weighing control meter the material into the pouch according to the confirmed recipe.
2. Vacuum shaping
The filled pouch enters the vacuum-forming process to create the specified compact six-sided profile.
3. Sealing and discharge
The pouch is sealed and discharged for downstream conveying, inspection, case packing or palletizing.
4. Product changeover
Stored settings support recurring products, while pouch and material changes are verified during setup and trial production.
Material Applications
Granular products for vacuum brick packaging
The best results come from free-flowing granules with stable bulk density and a pouch structure matched to the vacuum and sealing process.
Rice, grain and beans
Compact 5–15 kg packages for rice varieties, cereal grains, pulses and similar dry agricultural products.
Seeds and food granules
Evaluate particle size, dust level, breakage sensitivity and seal-area cleanliness before finalizing the configuration.
Pet food and cat litter
Suitable applications can be engineered according to kibble or granule size, bulk density, pouch dimensions and target vacuum shape.
Other compatible granules
Send representative samples when material flow, fragility, dust or product shape may affect weighing, filling, evacuation or sealing.
Global Project Planning
Confirm the machine for the destination market
The listed standard is AC 380 V, three-phase five-wire, with compressed air at 0.6 MPa. Before quotation, PAKEWIN checks the destination electrical standard, factory utilities, operating environment, pouch specification, language requirements, line layout and upstream or downstream equipment interfaces. This prevents avoidable changes during installation and commissioning.
Selection Information
What PAKEWIN needs for an accurate proposal
Send the material name, bulk density, particle size, target bag weight, pouch drawing and film structure, required packs per hour, desired package shape, available electrical and air supply, installation layout and photos or video of the current process. Representative material and pouch samples are recommended before final confirmation.
Related Equipment
Build a complete vacuum packaging line
Depending on the project, the PAK-VG15 can connect with material feeding, conveying, checkweighing, metal detection, case packing and palletizing equipment. View complete packaging line solutions or discuss the required interfaces with PAKEWIN.
