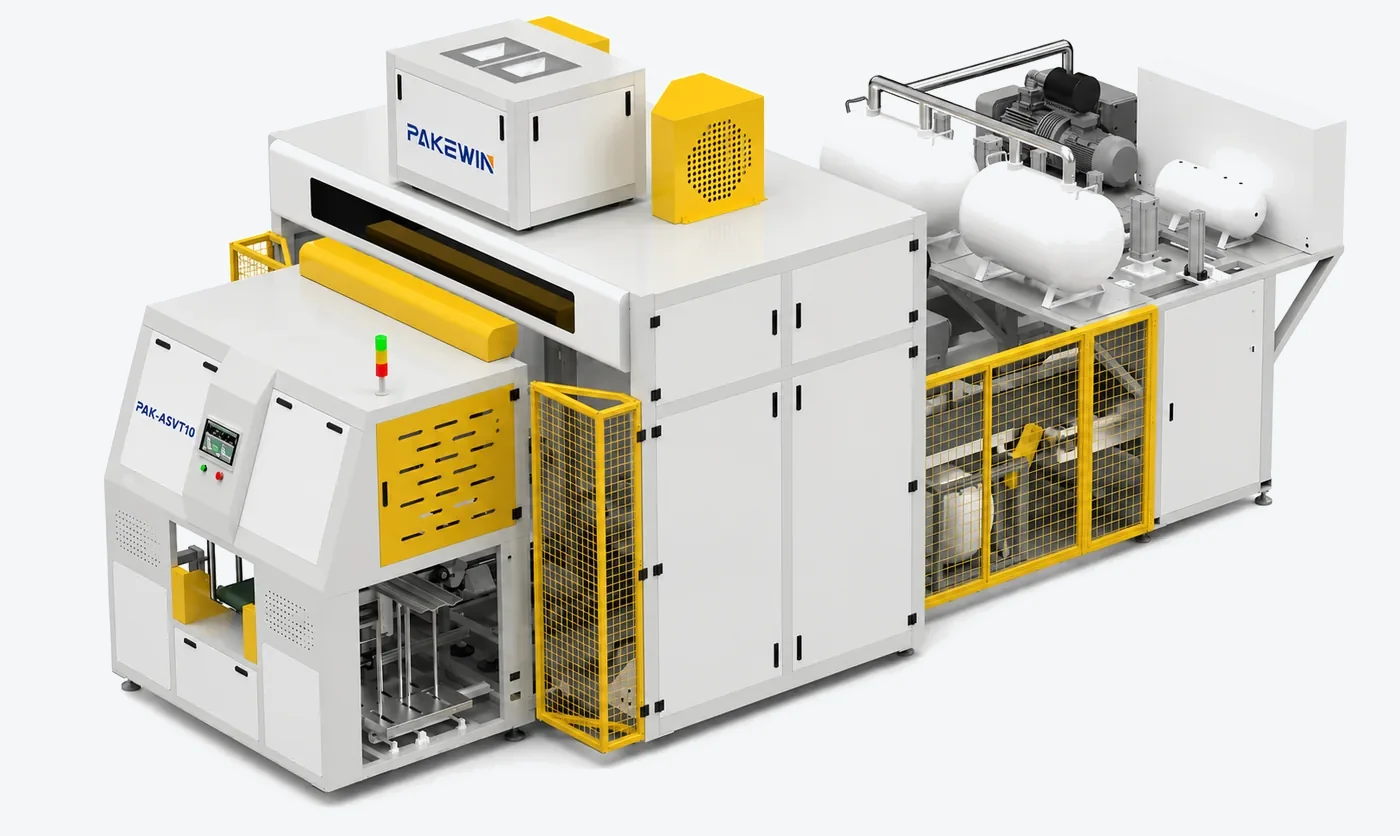

PAK-ASVT10 Integrated Vacuum Packing Machine
An integrated automatic system for two-side and six-side vacuum package formats across a broad range of retail rice and grain weights.
Integrated Vacuum Packing · 0.35–10 kg
Match the machine to the actual product and package
The PAK-ASVT10 brings product handling, vacuum processing, package shaping and discharge into one guarded system. It is intended for projects that require multiple vacuum formats and higher automation than operator-assisted equipment.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Fast operation and high productivity
Fast operation and high productivity
Intelligent automatic control
Intelligent automatic control
Applications
Where the PAK-ASVT10 fits
Retail rice packs
Run multiple pack weights after pouch and recipe validation.
Grain and beans
Evaluate product flow, abrasion and package integrity with samples.
Two-side formats
Configure a flatter vacuum profile for the approved product and pouch.
Six-side formats
Produce a compact brick profile for presentation and handling.
Technical Specifications
PAK-ASVT10 operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-ASVT10
Pack range0.35–10 kg
Stated capacity700–820 bags/h
Power supply3P5W AC 380V / 50Hz / 30 kW
Compressed air0.6–0.8 MPa / 40 m³/h
Size / accuracy2910 × 6205 × 2914 mm
Operating Sequence
How the process is organized
1. Feed and weigh
The line meters product for the selected recipe.
2. Load the package
The product enters the prepared packaging path.
3. Vacuum and form
The machine applies the selected two-side or six-side shaping sequence.
4. Seal and transfer
Finished packs discharge to inspection, case packing or palletizing.
Project Information
What to send before configuration
Confirm every intended product, package weight, bag dimensions, film structure, two-side or six-side format, vacuum target, changeover frequency, accepted output, utilities and downstream equipment.
Related Equipment
Compare the surrounding process
PAK-AVS5 automatic vacuum machine · PAK-VT1000 rice vacuum machine · Vacuum packing range
Frequently Asked Questions
PAK-ASVT10 buyer questions
Which package formats can the PAK-ASVT10 make?
It is listed for two-side and six-side vacuum formats. Each pouch, product and finished shape must be validated before the final configuration is confirmed.
What is the stated weight range?
The listed range is 0.35–10 kg, subject to product density, pouch dimensions and selected forming parts.
What is the stated capacity?
The listed output is 700–820 bags per hour. Actual accepted output depends on the complete application and line balance.
Can it connect to downstream automation?
Yes. Inspection, conveying, case packing and palletizing can be engineered around the final pack and accepted line rate.
