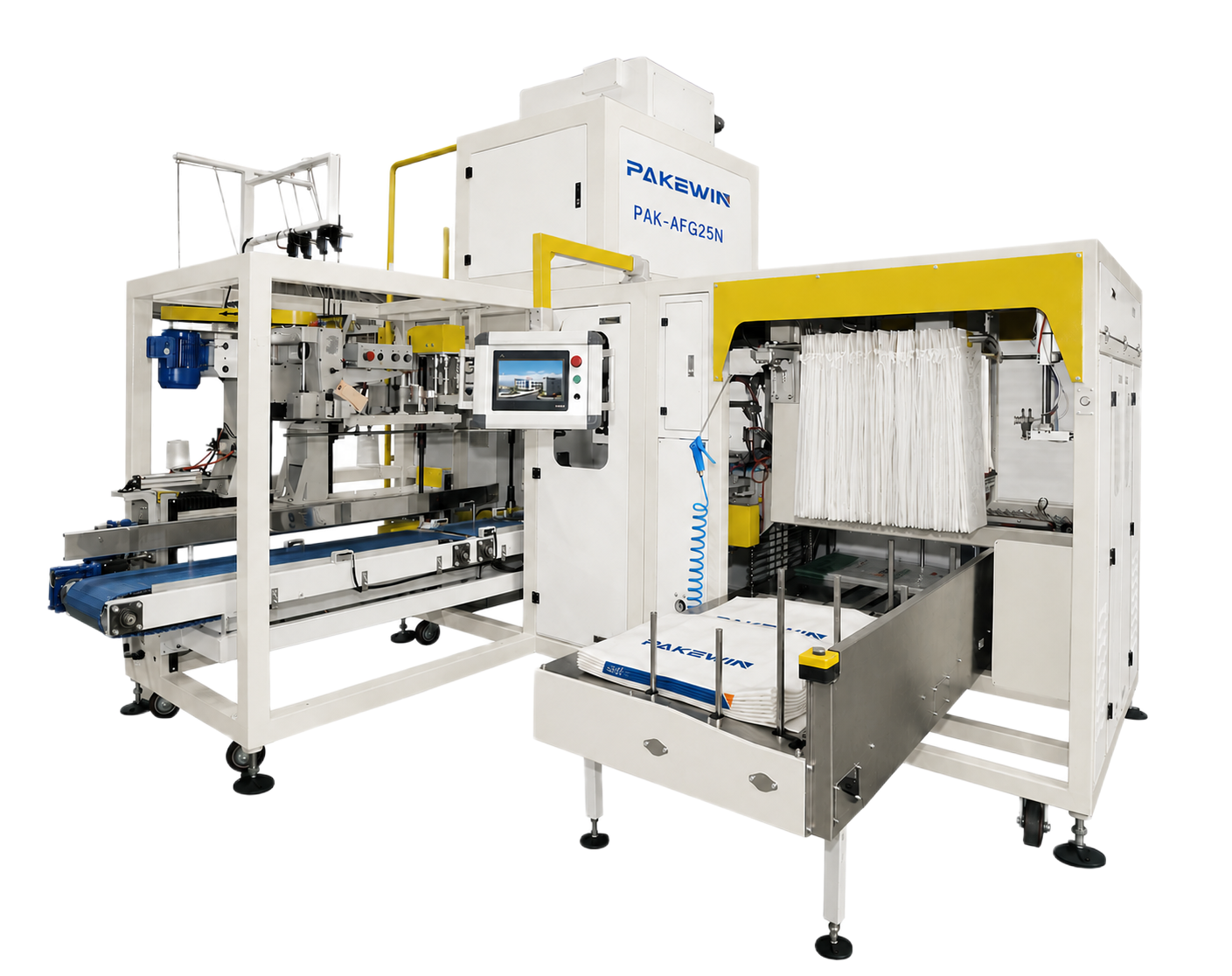

PAK-AFG25N Automatic Open-Mouth Bagging Machine
Automatic bag feeding, opening, weighing, filling, conveying and sewing for free-flowing granular products in open-mouth bags.
Automatic Open-Mouth Bagging · 5–25 kg
Match the machine to the actual product and package
The PAK-AFG25N is designed to automate repetitive bag handling around a 5–25 kg granular-product filling process. Final equipment and line design depend on the actual bag, product, required closure and sustained accepted output.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
High-Speed Weighing System
High-Speed Weighing System
Automatic Bag Opening Detection
Automatic Bag Opening Detection
Applications
Where the PAK-AFG25N fits
Rice and beans
Automate common open-mouth bag formats for food processing and distribution.
Grains and seeds
Confirm flow, bulk density and breakage sensitivity with representative samples.
Feed and fertilizer granules
Review dust, corrosion, cleaning and material-contact requirements for the application.
Complete bagging lines
Connect discharge, inspection, conveying and palletizing to the confirmed bag output.
Technical Specifications
PAK-AFG25N operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-AFG25N
Pack range5–25 kg Open Mouth Bags
Stated capacity650–950 Bags/Hour
Power supplyAC380V 50Hz Three-Phase (Customizable)
Compressed air0.4–0.6 MPa, 15 m³/h
Size / accuracyBag Weight: 5–25 kg Bag Width: 210–380 mm Bag Length: 480–800 mm
Operating Sequence
How the process is organized
1. Feed an empty bag
The bag magazine and handling system present and open a suitable bag.
2. Clamp and fill
The bag is positioned under the weighing discharge for controlled filling.
3. Transfer and close
The filled bag moves through the selected sewing or closing process.
4. Inspect and discharge
Optional weight, metal or vision checks can be integrated before palletizing.
Project Information
What to send before configuration
Provide products and samples, bulk density, target weights, bag drawings and samples, bag material, closure method, sustained output, allowable rejects, utilities, inspection needs and factory layout.
Related Equipment
Compare the surrounding process
PAK-AFG25 automatic packing machine · PAK-BGS50 servo bagging machine · Fully automatic packing range
Frequently Asked Questions
PAK-AFG25N buyer questions
Which bags can the PAK-AFG25N handle?
It is listed for 5–25 kg open-mouth bags. Bag material, width, length, stiffness and closure method must be confirmed with samples.
What products are suitable?
Typical applications include rice, beans, grains, seeds and other compatible free-flowing granules. Dusty or irregular materials may require a different feeding system.
What is the stated output?
The listed range is 650–950 bags per hour. Actual accepted output depends on weight, bag handling, product flow, closure and downstream equipment.
Can it include checkweighing and palletizing?
Yes. Inspection, rejection, conveying and robotic palletizing can be integrated after the complete line rate and interfaces are defined.
