Compatible with multiple approved packaging-bag materials
Compatible with multiple approved packaging-bag materials; compact layout for limited installation space
Home / Semi-Automatic Packing / PAK-600YD

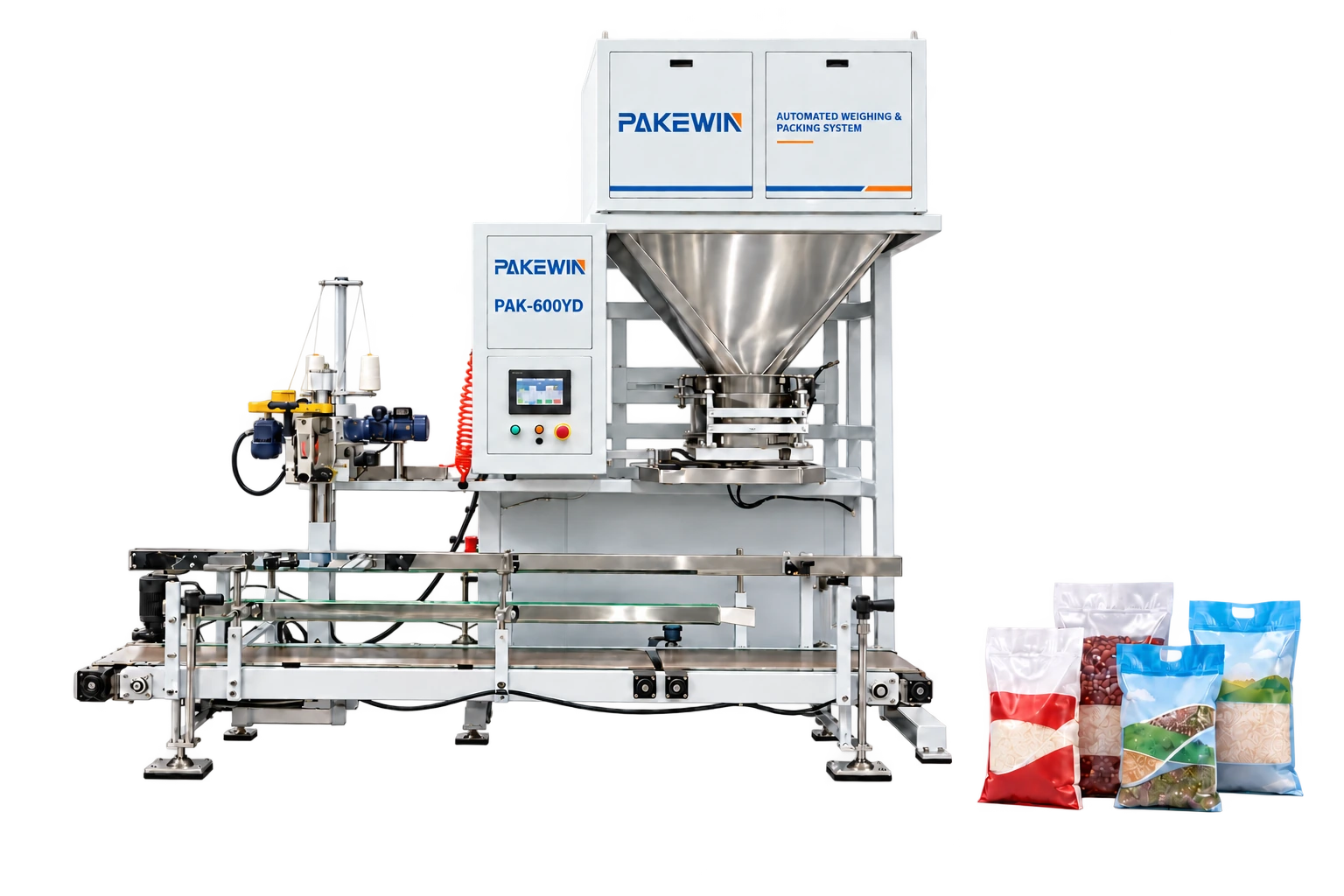

PAK-600YD 25-100 kg Semi-Automatic Woven Bag Packing Machine
Operator-fed large-bag packaging with quantitative weighing, bag clamping, filled-bag conveying, edge folding, sewing and thread cutting for compatible granular products.
Semi-Automatic Bag Clamping · 25-100 kg Open-Mouth Bags
Match the machine to the actual product and package
The PAK-600YD is a semi-automatic open-mouth bag packing machine for 25-100 kg applications. An operator presents an approved bag, while the configured system supports quantitative weighing and filling before the filled bag moves through conveying, edge folding, sewing and thread cutting. It is intended for woven polypropylene and other compatible large bags after sample validation.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Automatic bag arranging, conveying, edge folding, sewing and thread cutting reduce manual handling
Automatic bag arranging, conveying, edge folding, sewing and thread cutting reduce manual handling
Automatically adjustable conveyor height and one-touch conveying-speed changeover for approved formats
Automatically adjustable conveyor height and one-touch conveying-speed changeover for approved formats
Applications
Where the PAK-600YD fits
Rice, grains and beans
Pack compatible free-flowing food grains into approved 25-100 kg open-mouth bags for bulk distribution or export.
Nuts and granular foods
Confirm particle size, breakage sensitivity, oil, dust and food-contact requirements with representative samples.
Feed, pet litter and agricultural granules
Match the feeder, product-contact construction and dust controls to the actual bulk material.
Compatible chemical granules
Review corrosion, dust, hazardous-area and cleaning requirements before the machine configuration is accepted.
Technical Specifications
PAK-600YD operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-600YD
Pack range25–100 kg
Stated capacity400–600 bags/h
Power supplyAC 380 V / 4 kW
Compressed airConfirm for final configuration
Size / accuracyAccuracy grade 0.2; 3952 × 1320 × 3362.5 mm; excludes 2240 mm conveyor length
Operating Sequence
How the process is organized
1. Place and clamp the empty bag
An operator positions an approved open-mouth bag at the filling station, where the bag is held for the configured cycle.
2. Weigh and fill
The weighing system meters the selected target amount and discharges the batch into the supported bag.
3. Convey and prepare the bag mouth
The filled bag transfers on the adjustable conveyor while the bag mouth is arranged and edge-folded for closing.
4. Sew, cut the thread and discharge
The bag is sewn, the thread is cut and the completed package leaves for inspection, palletizing or warehouse handling.
Project Information
What to send before configuration
Send the product name, bulk density, particle size, dust and flow behavior, target weights, bag material and dimensions, liner details, required closure, sustained accepted output, electrical standard, available compressed air, layout and downstream process. Real product and bag samples should be tested before the final configuration is approved.
Related Equipment
Compare the surrounding process
PAK-BG100 heavy bag packing machine · PAK-BGS50 servo granular bagging machine · Semi-automatic packing machine range · Automatic packaging lines
Frequently Asked Questions
PAK-600YD buyer questions
What products can the PAK-600YD pack?
The brochure lists rice, miscellaneous grains, roasted nuts, cat litter, feed and compatible chemical granules. Final suitability depends on product flow, bulk density, dust, particle shape and required product-contact construction.
What is the PAK-600YD packing range?
The stated range is 25-100 kg per bag. Each target weight must be checked against the actual product density and bag dimensions.
What is the stated packing speed?
The brochure states 400-600 bags per hour. Sustained accepted output depends on target weight, product flow, operator bag placement, bag material, sewing cycle and downstream handling.
Is the PAK-600YD fully automatic?
No. It is a semi-automatic machine because an operator presents the empty bag. The configured cycle then supports weighing, filling and downstream bag-closing operations.
Which bag materials can it handle?
The brochure states compatibility with multiple packaging-bag materials and identifies the machine as a semi-automatic PP woven bag packing machine. Real bags must be tested for clamping, conveying, folding and sewing.
What information is needed for a quotation?
Provide the product, target weights, bulk density, required bags per hour, bag material and dimensions, closure method, electrical standard, compressed-air availability, layout and destination country.
