1–5 kg filling range for multiple free-flowing granular products
1–5 kg filling range for multiple free-flowing granular products
Home / Semi-Automatic Packing / PAK-HZ1

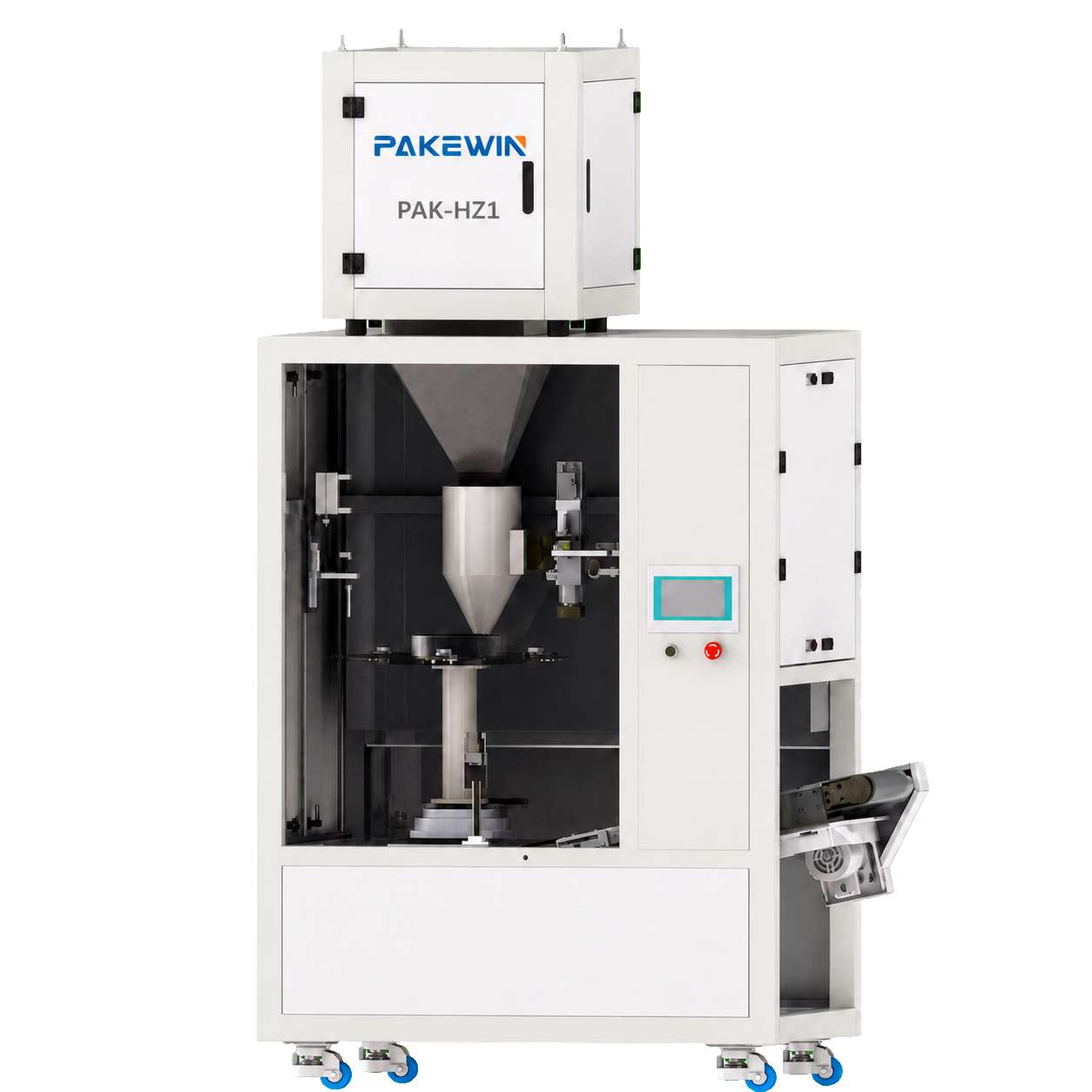

PAK-HZ1 Spout Pouch Filling and Capping Machine
Weighing, filling, cap tightening and discharge for free-flowing granules in premade 33 mm spout pouches.
Semi-Automatic Spout Pouches · 1–5 kg
Match the machine to the actual product and package
The PAK-HZ1 is a semi-automatic machine: the packaging cycle is automated, while pouch presentation and replenishment still require operator involvement. It is intended for free-flowing granular products rather than liquids.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Automatic weighing, precise filling, cap tightening and pouch discharge in one system
Automatic weighing, precise filling, cap tightening and pouch discharge in one system
Rated output of 300–380 bags per hour
Rated output of 300–380 bags per hour
Applications
Where the PAK-HZ1 fits
Rice and mixed grains
Fill distinctive spout-pouch formats after flow and seal-area testing.
Seeds and millet
Confirm particle dimensions and the 33 mm spout opening with samples.
Cat litter and compatible granules
Review dust, abrasion and product-contact requirements before selection.
Multi-product production
Store repeatable settings and plan controlled cleaning between products.
Technical Specifications
PAK-HZ1 operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-HZ1
Pack range1–5 kg premade spout pouches for free-flowing granular products, including rice, millet, corn, mixed grains, seeds and cat litter; compatible with 33 mm spouts.
Stated capacity300–380 bags/hour; actual output depends on filling weight, product flowability, pouch specification and operating conditions.
Power supplySingle-phase AC 220 V, 50 Hz, 1.2 kW
Compressed air0.6–0.8 MPa; air consumption approximately 18 m³/h
Size / accuracyApproximately 1,200 (L) × 1,000 (W) × 2,400 (H) mm; scale division: 1 g; accuracy class: X (0.5)
Operating Sequence
How the process is organized
1. Present the pouch
The operator positions an approved premade spout pouch.
2. Weigh and fill
The system meters the target amount and fills through the spout.
3. Align and tighten the cap
Servo positioning supports the automated capping sequence.
4. Discharge
The finished pouch leaves the station for inspection and packing.
Project Information
What to send before configuration
Send the product, target weights, bulk density, particle size, pouch and cap samples, spout drawing, required output, gas or bag-blowing requirement, utilities, operator method and cleaning standard.
Related Equipment
Compare the surrounding process
PAK-MH1000 small-granule packing machine · PAK-VFS1 vertical form-fill-seal machine · Semi-automatic packing range
Frequently Asked Questions
PAK-HZ1 buyer questions
Does the PAK-HZ1 fill liquids?
No. This configuration is described for compatible free-flowing granular products. Liquid filling requires different dosing and product-contact equipment.
Why is it classified as semi-automatic?
The machine automates weighing, filling, cap tightening and discharge, but an operator remains involved in pouch handling or replenishment.
What pouch is required?
The listed configuration uses premade pouches with a 33 mm spout. Pouch and cap samples must be approved before manufacture.
What is the stated output?
The listed rate is 300–380 bags per hour. Actual output depends on filling weight, product flow, pouch handling and cap cycle.
