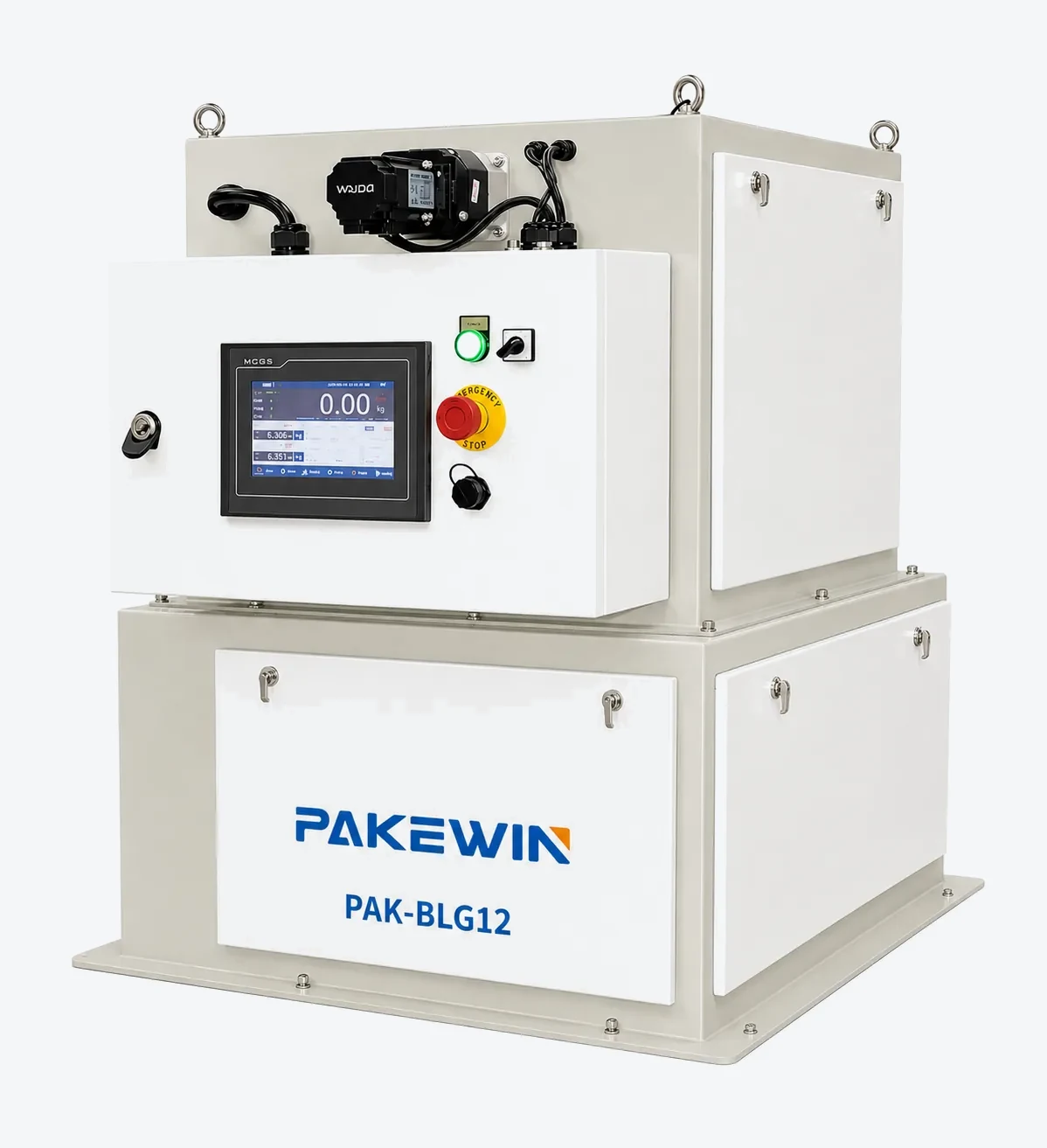

PAK-BLG12 Blending Weighing Machine
Controlled weighing for granular-product blending and batching before storage, processing or packaging.
Process Weighing · 0.3–12 t/h
Match the machine to the actual product and package
The PAK-BLG12 is a process weighing unit for compatible free-flowing granular materials. It can support recipe-based blending or batching when installed with correctly sized upstream feeding and downstream transfer equipment.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Food-grade stainless steel
Food-grade stainless steel
Intelligent control with simple operation
Intelligent control with simple operation
Applications
Where the PAK-BLG12 fits
Rice blending
Meter rice streams for controlled recipes before packing.
Grain and seed processing
Support repeatable batches for compatible free-flowing materials.
Ingredient proportioning
Coordinate the weighing unit with controlled feeders and a common discharge path.
Packaging-line preparation
Place process weighing upstream of bagging where recipe control is required.
Technical Specifications
PAK-BLG12 operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-BLG12
Process range—
Stated capacity0.3–12 t/h
Power supplyAC 220V ±10% / 50–60Hz / 500 W
Compressed air0.4–0.6 MPa
Size / accuracyAccuracy ≤0.5%
Operating Sequence
How the process is organized
1. Supply material
Upstream equipment delivers each material at a stable, controllable rate.
2. Measure
The weighing unit measures the required amount according to the active recipe.
3. Discharge
The measured material transfers to the blending or collection process.
4. Record and repeat
Controls repeat the cycle and can be coordinated with the wider production line.
Project Information
What to send before configuration
Provide material names, bulk densities, particle sizes, number of components, minimum and maximum ratios, target throughput, batch or continuous process, accuracy requirement, inlet and outlet heights and cleaning plan.
Related Equipment
Compare the surrounding process
PAK-P3 / PAK-P4 rice blending system · PAK-FLG18 flow scale · Process weighing range
Frequently Asked Questions
PAK-BLG12 buyer questions
What materials can the PAK-BLG12 weigh?
It is intended for compatible free-flowing granular materials. Sticky, dusty, fragile or irregular products require sample evaluation.
What is the stated throughput?
The listed range is 0.3–12 tonnes per hour. Actual performance depends on material flow, feeder control, recipe and installation.
What accuracy is stated?
The published value is within 0.5%. The applicable calculation, test duration and operating conditions should be agreed during project confirmation.
Can it feed a packaging machine?
Yes, when the upstream and downstream equipment are sized and controlled as one system.
