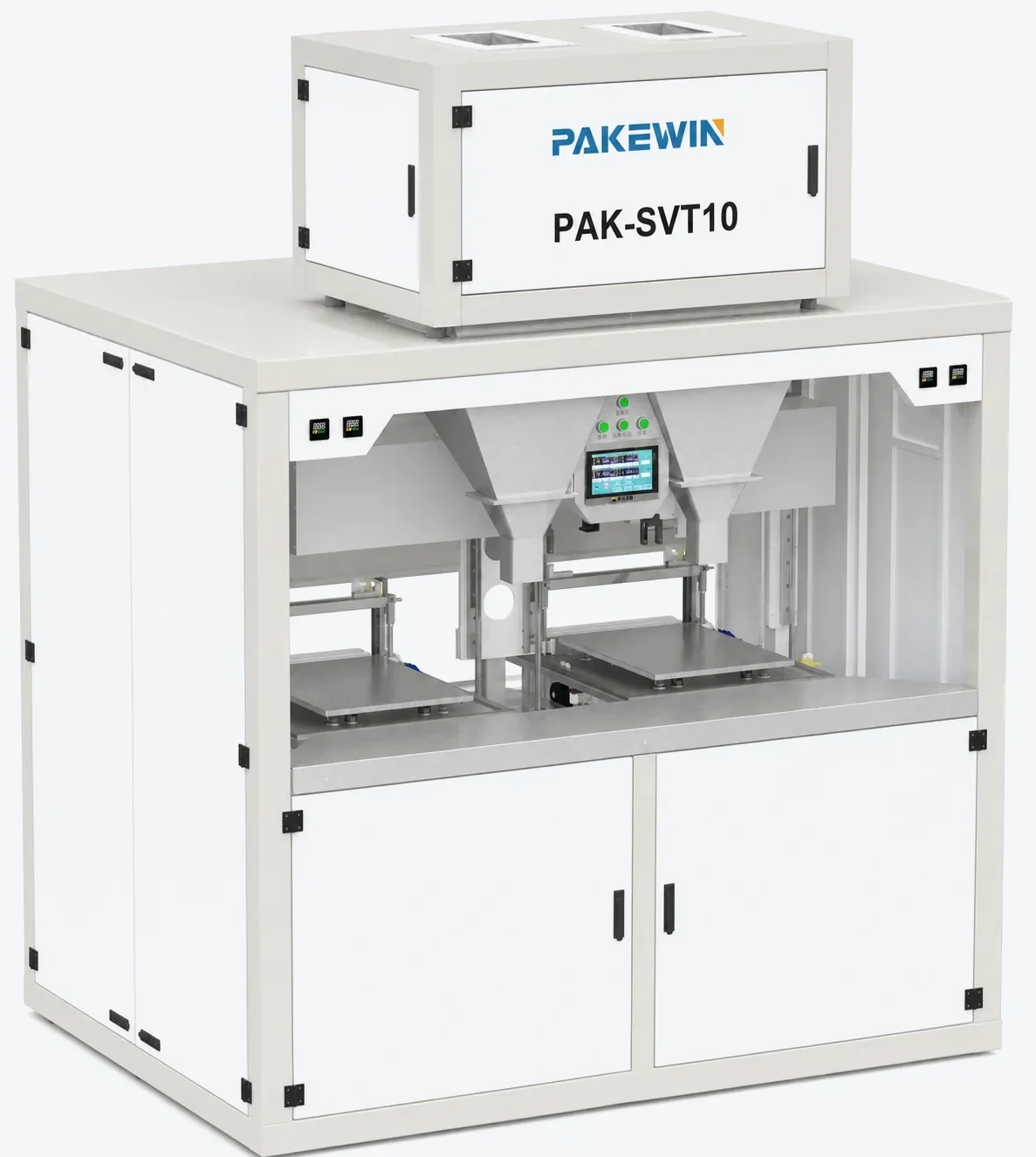

PAK-SVT10 Two-Side Vacuum Packing Machine
A flexible two-side vacuum packing system for medium-size rice and grain bags, with vacuum and non-vacuum operating modes.
Semi-Automatic Vacuum Packing · 2–10 kg
Match the machine to the actual product and package
The PAK-SVT10 combines controlled weighing with two working positions for semi-automatic package handling. It is suited to factories that need vacuum presentation without the cost and complexity of a fully automatic bag-handling line.
Published values are reference specifications, not a guarantee for every material or package. PAKEWIN confirms the final configuration through application review and representative sample testing.
Stable running with accurate weighing
Stable running with accurate weighing
Vacuum and non-vacuum modes available
Vacuum and non-vacuum modes available
Applications
Where the PAK-SVT10 fits
Rice and grain
Prepare compact 2–10 kg packs for retail, wholesale or export.
Beans and seeds
Confirm product edges, flow and breakage risk through sample trials.
Vacuum and non-vacuum products
Use the appropriate recipe and package structure for each market format.
Growing factories
Add controlled weighing and vacuum packing while retaining operator-assisted loading.
Technical Specifications
PAK-SVT10 operating data
Confirm voltage, utilities, dimensions, output and acceptance criteria for the destination and final application.
ModelPAK-SVT10
Pack range2–10 kg
Stated capacity300–800 bags/h
Power supply3P5W AC 380V / 50Hz / 7.5 kW
Compressed air0.6–0.8 MPa / 35 m³/h
Size / accuracy2230 × 1836 × 2400 mm
Operating Sequence
How the process is organized
1. Weigh
The machine meters the selected target weight.
2. Present the pouch
An operator places and positions the premade pouch according to the work instruction.
3. Evacuate and seal
The selected recipe controls the vacuum and closing sequence.
4. Remove and inspect
The operator checks seal quality and pack shape before downstream handling.
Project Information
What to send before configuration
Provide the product, target weight, pouch dimensions and structure, required vacuum level, expected hourly output, operator plan, utility supply and examples of acceptable finished packs.
Related Equipment
Compare the surrounding process
PAK-VG10 vacuum packing machine · PAK-VG25 large vacuum machine · Vacuum packing range
Frequently Asked Questions
PAK-SVT10 buyer questions
Is the PAK-SVT10 fully automatic?
No. It is a semi-automatic system and requires operator handling of the pouch during the packaging cycle.
What bag weights are supported?
The stated range is 2–10 kg. The final range depends on product density, pouch size and the required finished shape.
Can it run without vacuum?
The listed configuration supports vacuum and non-vacuum modes. The sealing recipe and pouch structure must match the selected mode.
What affects production speed?
Target weight, operator rhythm, product flow, evacuation time, seal time and finished-pack inspection all affect sustained output.
